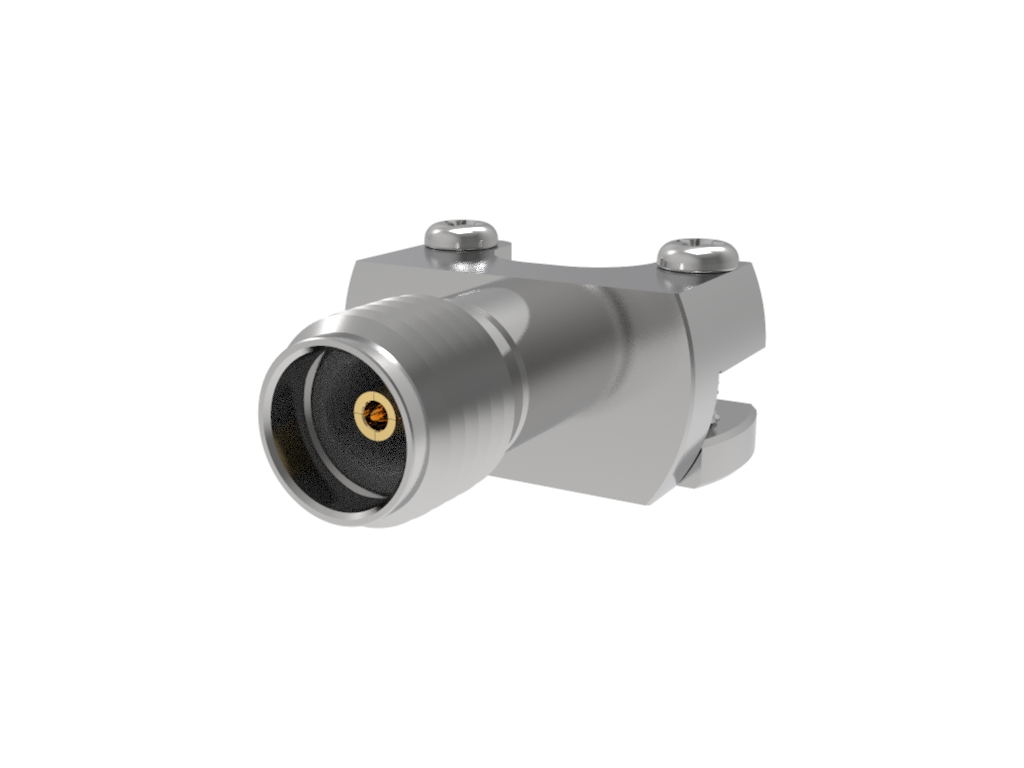

2.4mm Female Edge Launch Solder Mount, Pick and Place

2.4mm Female, Jack, Edge Launch, Solder Mount, SMT, Pick and Place
SKU: TMB-E4FS-1ST
2.4mm Female, Jack, Edge Launch, Solder Mount, SMT, Pick and Place
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Coaxial Connector (RF)
Packaging Tray
Contact Termination Compression
Housing Finish Passivated SST
Number of Ports 1
RF Connector Specifications
Gender Female
Impedance 50 ohms
Mounting Style Surface
Max Frequency 26.5 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Operating Temperature -55°C to + 85°C
Voltage 500 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss 0.2 dB
T & M Specifications
Series 3.5 mm
Connector Style 3.5 mm
Shield Termination Threaded
Fastening Type Threaded
Connector Type Jack, Female Socket
Features Field Replicable, Compliant Mount to PCB
*
*
*
