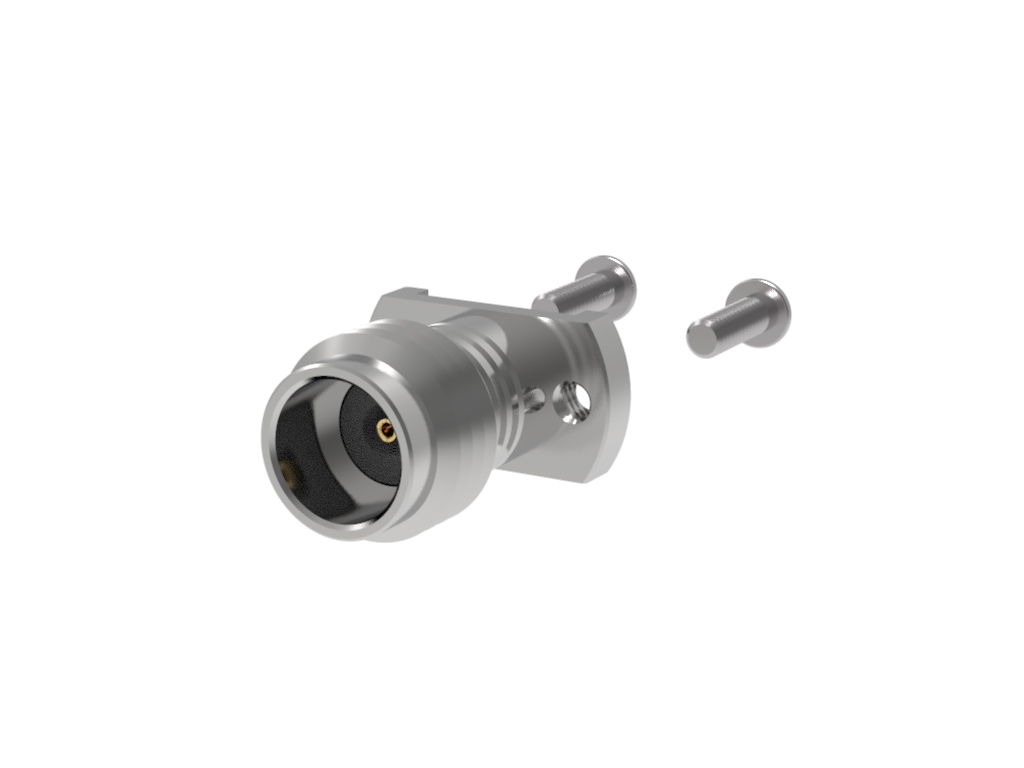

1.85mm Solderless Female Vertical CPW

SKU: TMB-V8F2-3LC

1.85mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2-hole, coplanar waveguide, Microstrip

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Coaxial Connector (RF)
Packaging	Tray
Contact Termination	Compression
Number of Ports	1
Housing Finish	Passivated SST
RF Connector Specifications
Operating Temperature	-55°C to + 85°C
Gender	Female
Impedance	50 ohms
Mounting Style	Surface
Max Frequency	67 GHz
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Dielectric Material	PTFE
Voltage	500 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	0.2 dB
T & M Specifications
Series	1.85 mm
Connector Style	1.85 mm
Connector Type	Jack, Female Socket
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
