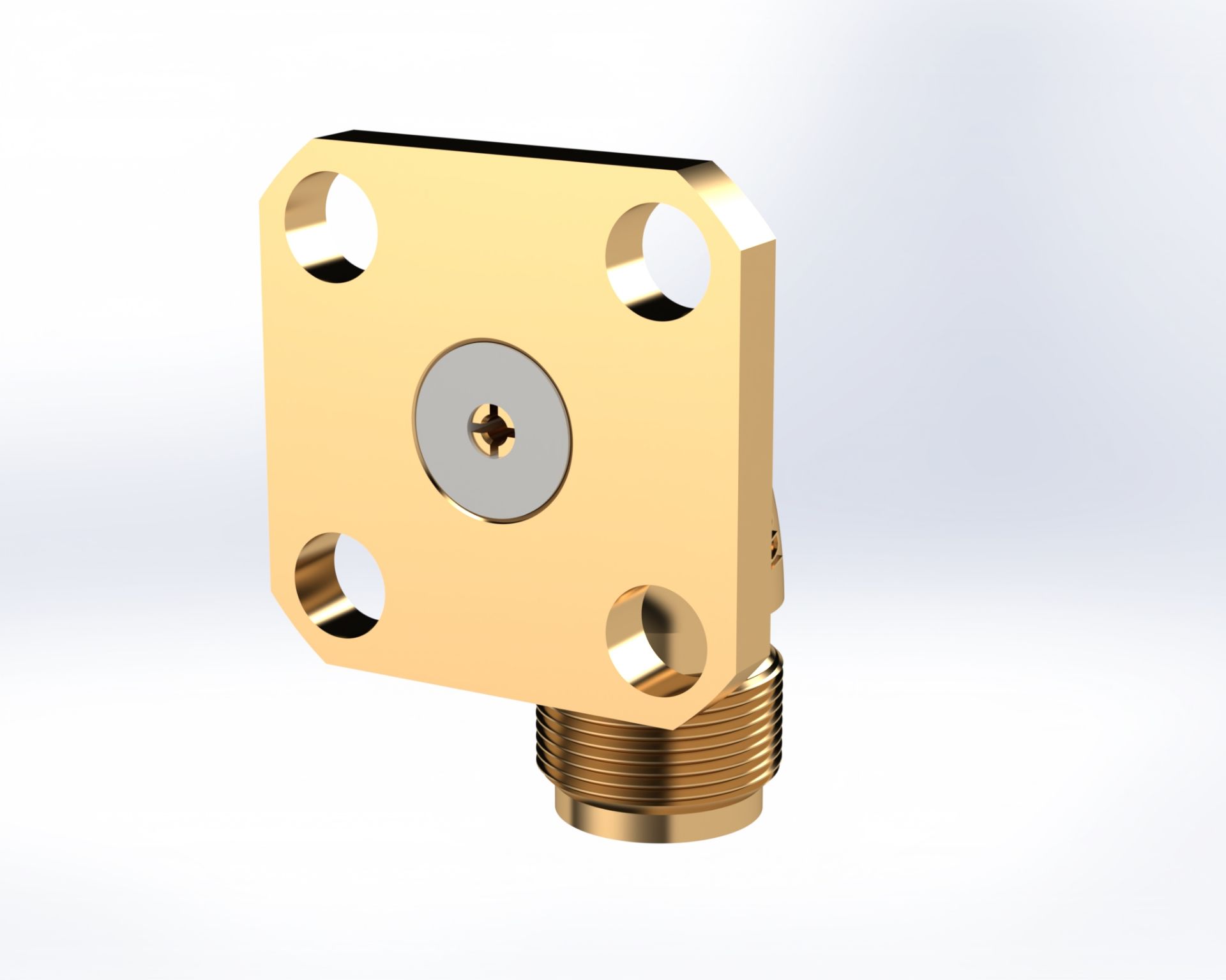

SMA Female Radius R/A Field Replaceable Connector (.020), Gold

The SMA Female Radius Right Angle to Field Replaceable(.02)0" PIN from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 5530-2CC
The SMA Female Radius Right Angle to Field Replaceable(.02)0" PIN from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Impedance 50 ohms
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Insertion Loss .10 dB max @ 6 GHz
Frequency 18 GHz
Contact Termination Field Rep.
Housing Finish Gold
Gender Female
Body Orientation Right Angle
RF Series SMA
RF Connector Specifications
Hermetic Yes
Body Plating Passivate
Termination Field Rep.
Interface Type Straight
Center Contact Plating Gold
Center Contact Material BeCu
Voltage 335 Vrms max @ sea level
Mating Cycles 500 Cycles
Body Material 304 SST
*
*
*
