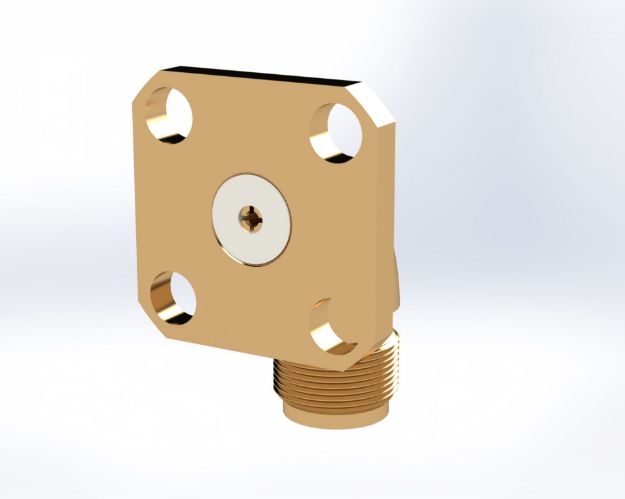

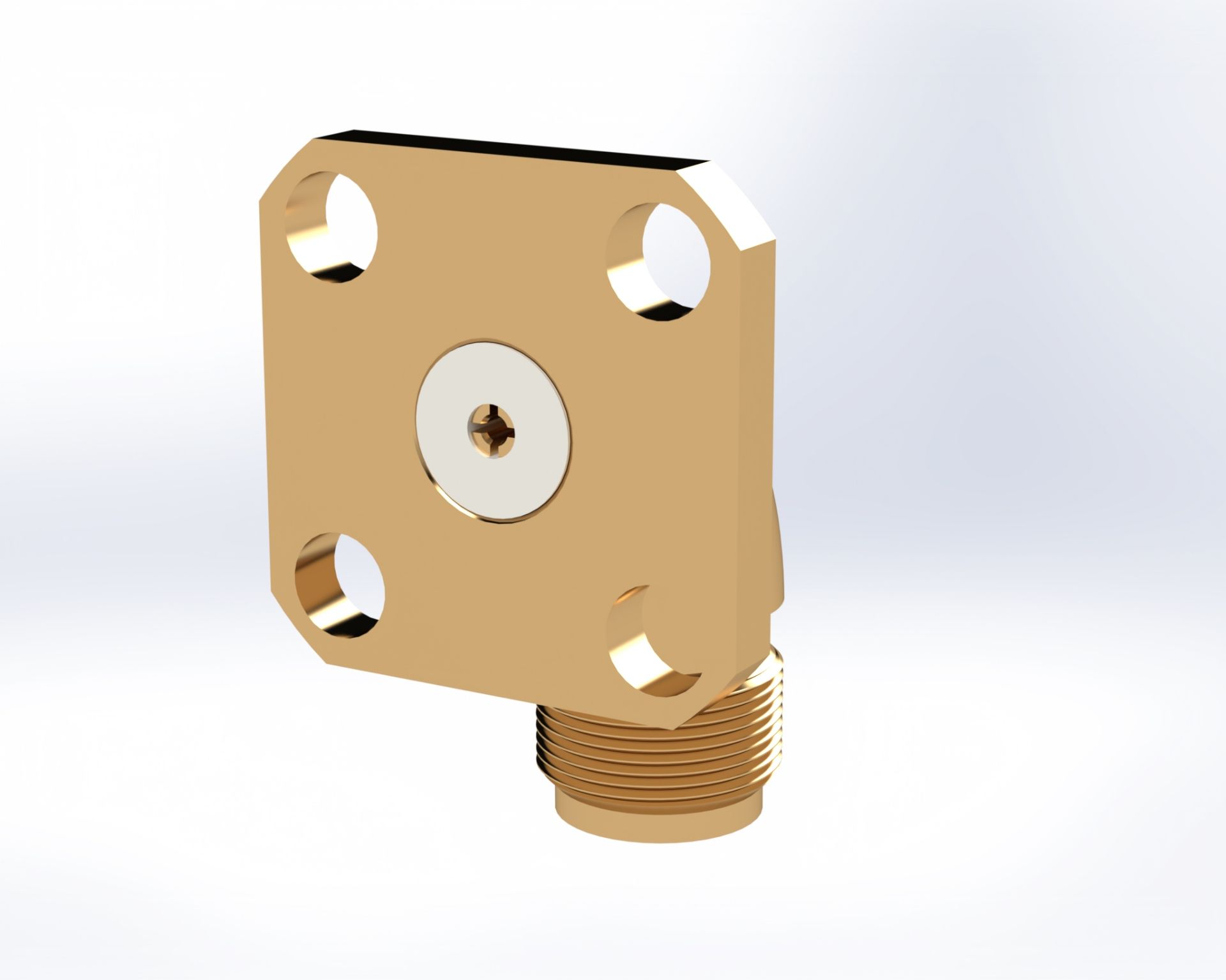

SMA Female Radius R/A Field Replaceable Connector (.020), Passivate

The from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 5530-2CCSF

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Impedance	50 ohms
Dielectric Material	PTFE
Operating Temperature	-65°C to +165°C
Insertion Loss	.10 dB max @ 6 GHz
Frequency	18 GHz
Contact Termination	Field Rep.
Housing Finish	Passivate
Gender	Female
Body Orientation	Right Angle
RF Series	SMA
RF Connector Specifications
Mounting Style	4 Hole PNL.
Hermetic	No
Body Plating	Gold
Termination	Terminal
Center Contact Plating	Gold
Center Contact Material	BeCu
Voltage	335 Vrms max @ sea level
Mating Cycles	500 Cycles
Body Material	304 SST
